#Braumeister 1000L Light
Think even bigger!
The #Braumeister 1000L Light without crane was specially developed for commercial brewers with limited space and/or the option of installing their own crane on site, including a rail above the Braumeister.
This saves space, makes handling even easier and more flexible and, of course, makes the brewing system more attractive in terms of price.
The other advantages of the Braumeister concept and the technical data for heating, pump and control remain the same. These include the small space requirement, maximum flexibility as it is on castors, without a crane and made of the highest quality stainless steel.
- Made of stainless steel
- Low space requirement
- Without crane unit
- Brewing quantity: 1000 litres of finished beer (normal beer) = aprox. 1050 l wort
- Max. malt quantity 225 kg
The new automatic control system brews with your own individual recipes and guides you through the brewing process. Recipes and software updates can be synced automaticaly with the integrated wifi. The time and temperature are precisely maintained through all brewing phases. The new touchscreen makes it even easier to operate the Braumeister.
In addition, the large Braumeisters have integrated a new pressure sensor-controlled pump control. The pressure sensor in the pressure line which is connected with the malt pipe allows you to regulate the pump speed via the pressure. The new timer function saves time because, for example, the brewing water can be heated up early in the morning.
Product Code: SP41000-30
“Item not held in stock, imported to order only. Local delivery from port of arrival additional”
TECHNICAL DETAILS
- Heating coil: 12 x 3000 W output
- Pump: 370 W
- Power supply connection: 400V 3-phase (fuse protection min. 63 Amp.) [NB: Requires wiring & AUS plug, not supplied]
- Total power consumption: 38 kW
- Cooling: 2.56 m2 double jacket surface area. An additional heat exchanger plate for cooling is recommended (not supplied)
- Control system: fully automatic brewing control (temperature, time, pump)
- Pressure sensor in pressure line to control pump via pressure (or speed as before)
- Vaulted top with DN 150 connection piece for extractor hood and hop delivery opening
- Max. malt quantity: 225 kg

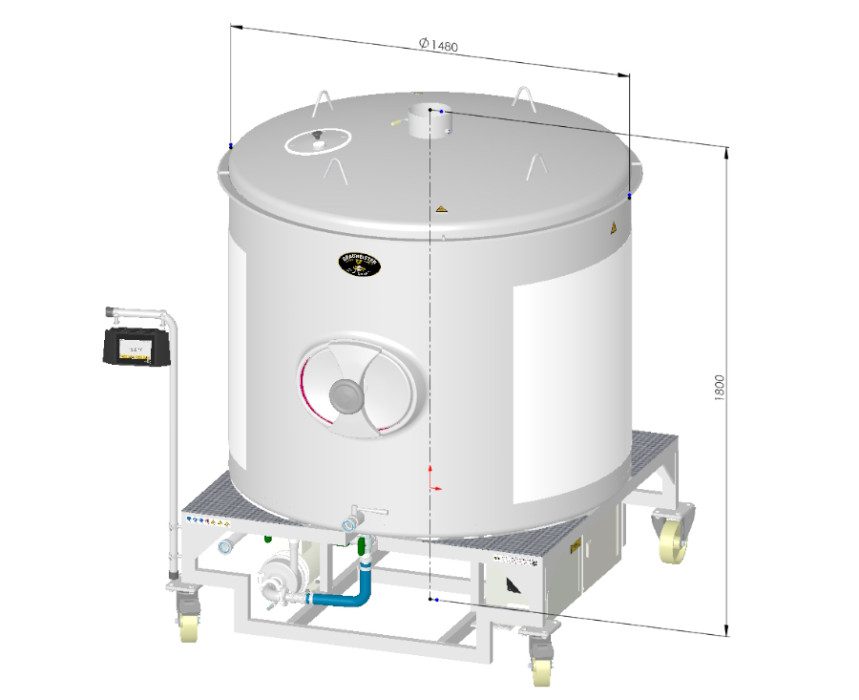

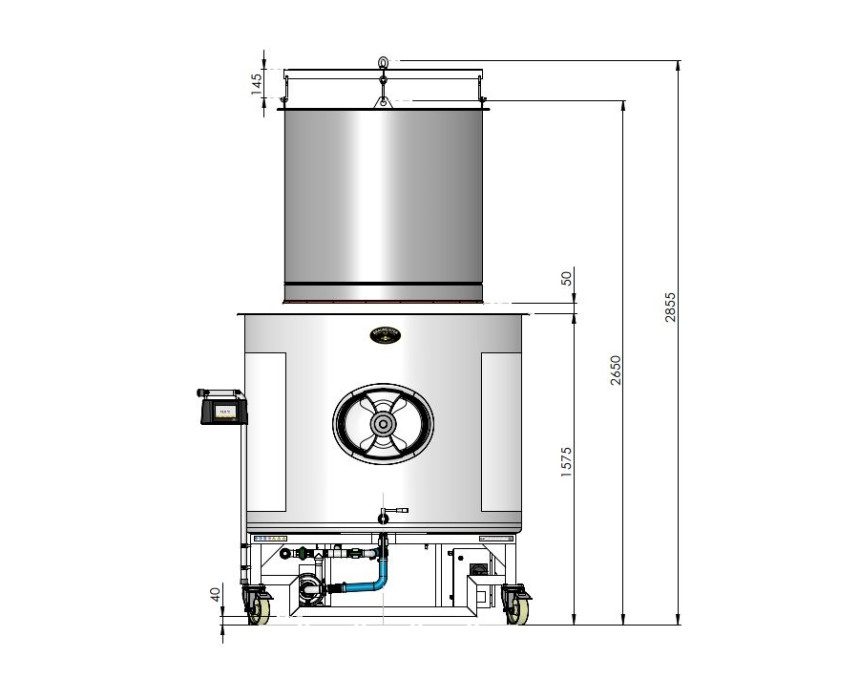

- Weight: 475kg; Dimensions: 148 x 148 x 180 cm (L x W x H)
- Shipping Weight: 610kg in wooden crate; Crated Dimensions: 180 x 180 x 200 cm (L x W x H)
